Acrel AMC16-DETT 6 Channel Dc Energy Meter For 5G Tower Base Stations

Name: Acrel AMC16DETT 6 Channel Dc Energy Meter For 5G Tower Base Stations
Brand: Acrel
Price: 62 USD

Wholesale Acrel AMC16-DETT 6 Channel Dc Energy Meter For 5G Tower Base Stations from china suppliers

Brand Name : Acrel

Model Number : AMC16-DETT

Certification : EAC

Place of Origin : China

MOQ : 1

Price : 62USD

Supply Ability : 9999+

Delivery Time : 3-5

Contact Now

Acrel AMC16-DETT 6 Channel Dc Energy Meter For 5G Tower Base Stations

Product Description

-48V 6 channel 4 circuit DC digital energy power meter for telecom base station

Base station dedicated DC energy meter AMC16-DETT is specially designed for base stations where have sharing requirements, and switch power supply is without the function of sub-user metering. The meter could measure 6 circuits DC energy, and supply working current to the matched hall sensors. Meanwhile, it can realize zero drift calibration by upper computer software. have the functions of telemetering, teleindication,teleadjusting, metering at real time, energy quality abnormal alarm, data storage and processing, data interaction. This meter can measure DC power consumption of three operators, providing detail datas for base station.

Specification

Input	DC voltage	1 channel: -48VDC
	DC current	6 channel hall current sensor,total DC200A/5V,Telecom, Mobile,Unicom and the 1st channel reserve 50A/5V, 2nd channel reserve 100A/5V.
	Grid power monitoring	1 channel: 0-5VDC
	Overload capacity	Voltage:1.2times continued,2 times continued 1s; Current: 1.2 times continued,10 times continued 1s.
Accuracy (superposition hall sensors)		1%In≤I≤10%In error±2.5%; I>10%In error±2%
resolution		Voltage output accuracy 0.01V; current output accuracy 0.01A; power output accuracy 0.01kw; energy output accuracy 0.01kwh
Functions	Basic function	Monitor device system time, total voltage, output total current, power, energy, each channel voltage, current, power, energy; LED indicator display;485 communication
	Metering function	Start current: under rated voltage, when the load current value of the meter doesn’t exceed 1% of the max. current, the meter starts. Shunt running current: when there is no current in the current circuit of the meter, and 85%-125%of the rated voltage is applied on the voltage circuit, the calculator shall not have more than
	Alarm function	DC low voltage output alarm,DC high voltage output alarm,one power down alarm, module voltage loss alarm, metering branch error alarm, internal program error alarm, clock error alarm, memory failure alarm and AC input power failure alarm
	Timing function	support broadcast timing, could remote timing to the meter by RS485
	Hall CT power supply	:Power supply output:+12V/100Ma, -12V/50mA
	Clock accuracy	≤0.5s/d(23℃),≤1s/d(-20℃～60℃)
Powe supply for ther meter		-40VDC~ -60VDC
Power consumption		≤2W

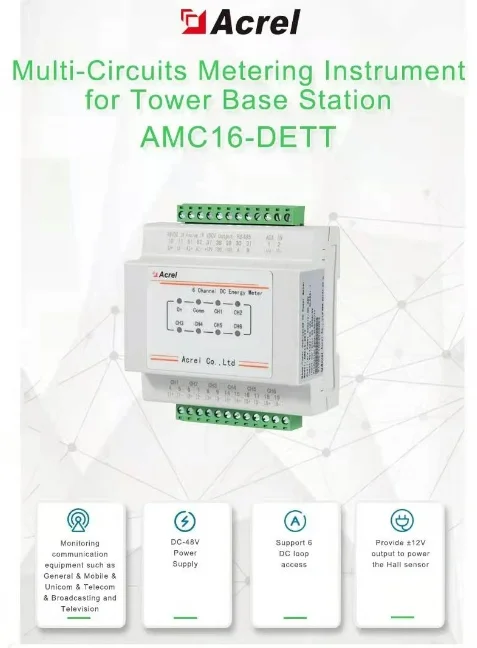

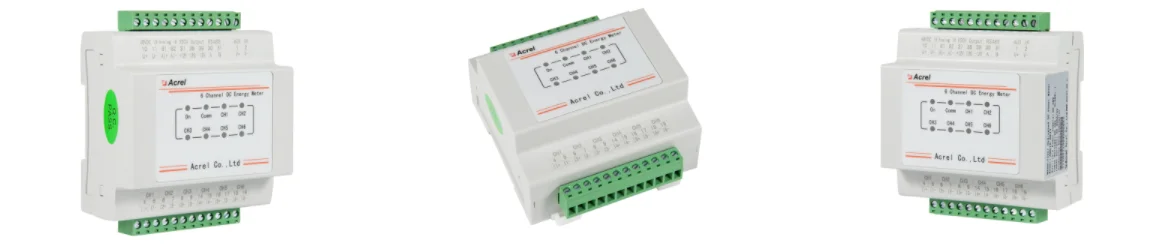

Appearance

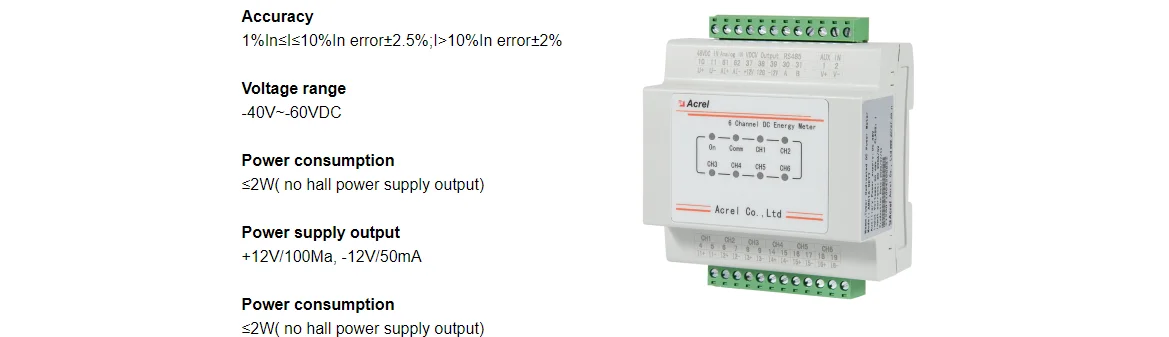

Parameters

Functions

*DC rated voltage:1 circuit -48VDC *DC current :6 channel hall current sensor,total DC200A/5V,Telecom operator 1 ,operator 2..... operator 3 and the 1st channel reserve 50A/5V, 2nd channel reserve 100A/5V. *Communication: RS485,default baud rate:9600bps *Main functions:Monitoring equipment system time, total voltage, output current, power and energy, each circuit voltage, current,power and energy,LED display *Alarm function:DC low voltage output alarm,DC high voltage output alarm,one power down alarm, module voltage loss alarm, metering branch error alarm, internal program error alarm, clock error alarm, memory failure alarm and AC input power failure alarm *Timing function:support broadcast timing, could remote timing to the meter by RS485 *Clamps power supply:Power supply output:+12V/100Ma, -12V/50mA *Power supply for the meter:-40~-60VDC

Customized service

If you have any special requirements, for example modbus address register ,wireless solution NB-IoT, Lora/Lorawan ,4G or special power supply and size ,please feel free to Contact Us.

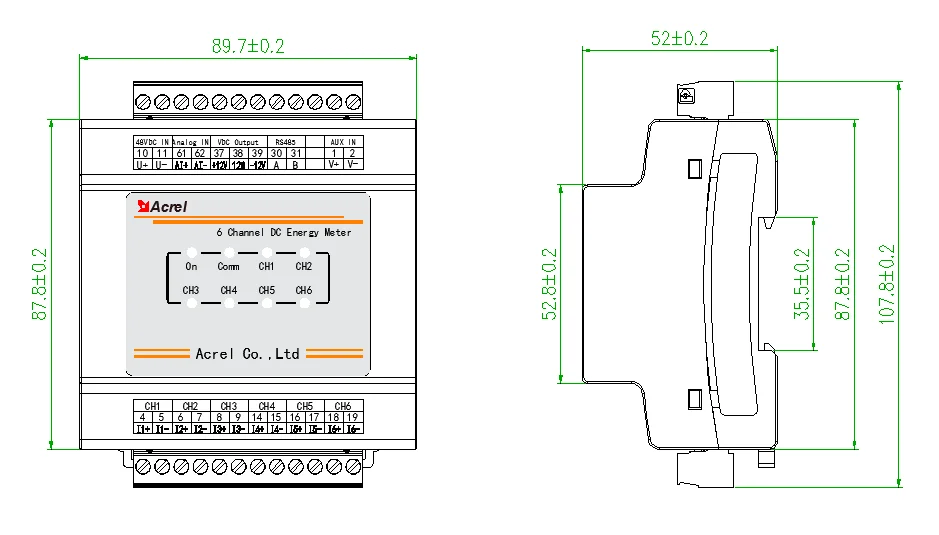

Dimensions

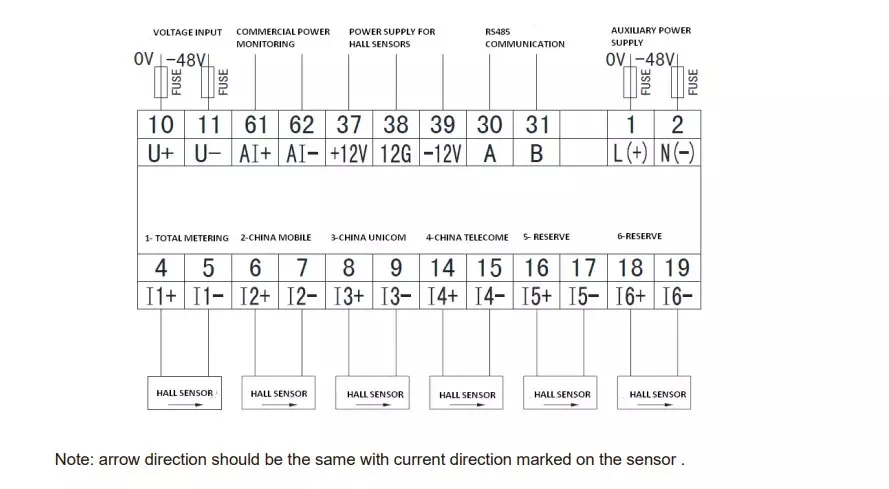

Wiring

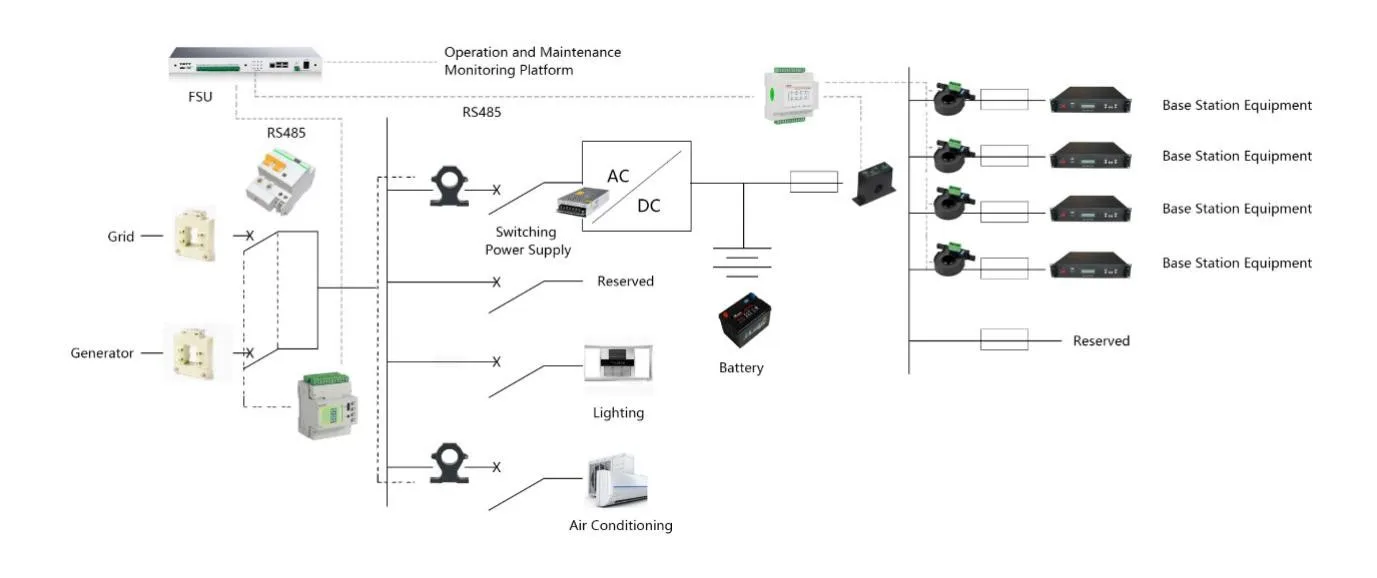

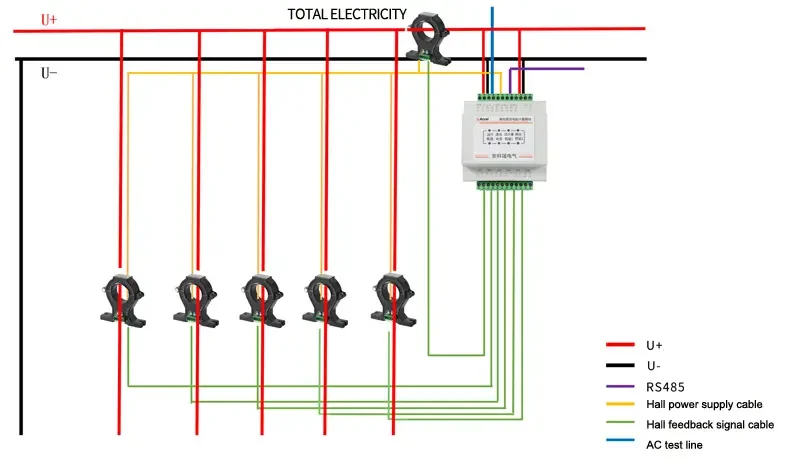

Application

Certifications

Company Profile

Acrel Electric Co., Ltd. [Stock Code: 300286.SZ]

Founded in 2003, one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users. Substation automation system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, FEPS power supply monitoring system, fire emergency lighting and evacuate indicating system, smart lighting control system and electric vehicle charging system.
